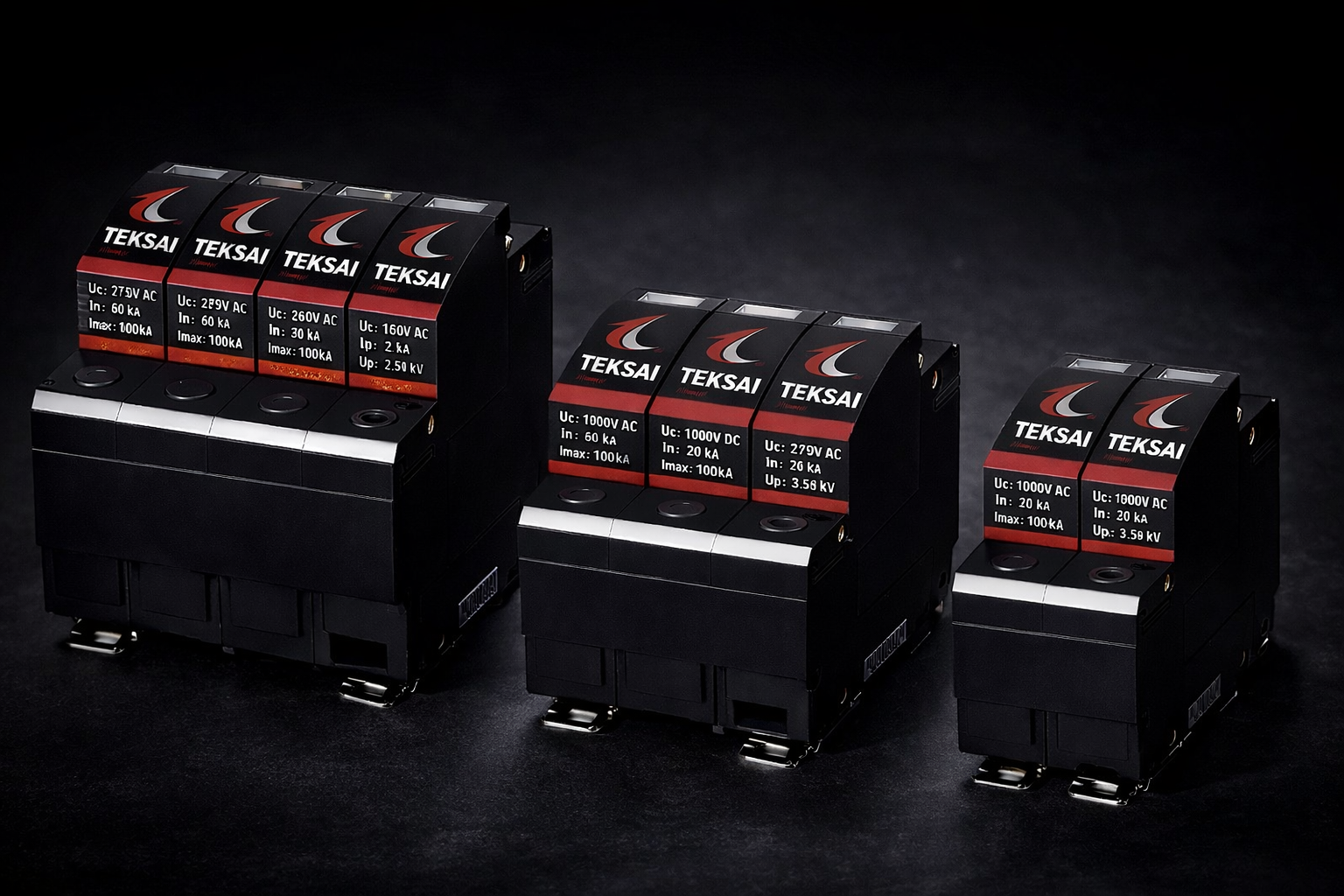

TEKSHIELD DC SPD
Solar PV & DC System Protection | Up to 1000V DC | 20kA-40kA Discharge Capacity | Rooftop Solar, EV Chargers & Battery Banks
Specialized DC Surge Protection for Solar & Battery Systems
TEKSHIELD DC SPD is specifically designed for protecting solar PV systems, EV chargers, battery banks, and other DC applications. Provides reliable surge protection for DC circuits up to 1000V with high discharge capacity.
DC Protection
Specialized surge protection for DC circuits and renewable energy systems
Ideal Applications
TEKSHIELD DC SPD is perfect for protecting DC circuits in renewable energy and electric vehicle applications
Rooftop Solar PV
Residential and commercial solar installations
EV Charging Stations
Electric vehicle charging infrastructure
Battery Banks
Energy storage systems and UPS
Solar Inverters
DC to AC conversion equipment
Technical Specifications
Detailed specifications ensuring reliable DC surge protection for renewable energy systems
DCElectrical Specifications
| Type | DC SPD |
| Voltage Rating | Up to 1000V DC |
| Discharge Capacity (In) | 20kA to 40kA (8/20 μs) |
| Poles Available | 2P / 3P / 4P |
| Protection Level | ≤1.5kV |
| Response Time | ≤25ns |
| Standards | IEC 61643-11 |
⚡Installation & Features
| Installation Location | Solar PV systems, DC panels |
| Mounting | DIN rail mountable |
| Status Indication | Visual LED indicators |
| Remote Monitoring | Optional alarm contact |
| Operating Temperature | -40°C to +70°C |
| Protection Class | IP20 |
| Warranty | 5 years |
Complete Surge Protection System
Enhance your protection with complementary TEKSHIELD products for comprehensive surge protection
Class I SPD
Primary protection for direct lightning strikes up to 100kA
Class II SPD
Secondary protection for switching surges up to 50kA
Class I+II Combined
Combined protection for both lightning and switching surges
