TYPE 1+2 | COMBINED SURGE PROTECTION

TEKSHIELD Class I+II SPD

Combined Lightning & Switching Surge Protection | Up to 100kA Discharge Capacity | Comprehensive Entry Point Protection

Get Protection AssessmentTechnical Specifications
Combined Protection

Comprehensive Surge Protection in One Device

TEKSHIELD Class I+II SPD combines both lightning current and switching surge protection in a single device. Perfect for entry points requiring comprehensive protection against all types of electrical surges.

Dual Protection:Handles both direct lightning and switching surges
Maximum Discharge Capacity:Up to 100kA for comprehensive protection
Entry Point Protection:Ideal for main distribution boards and service entrances
Space Efficient:Single device replaces multiple SPDs

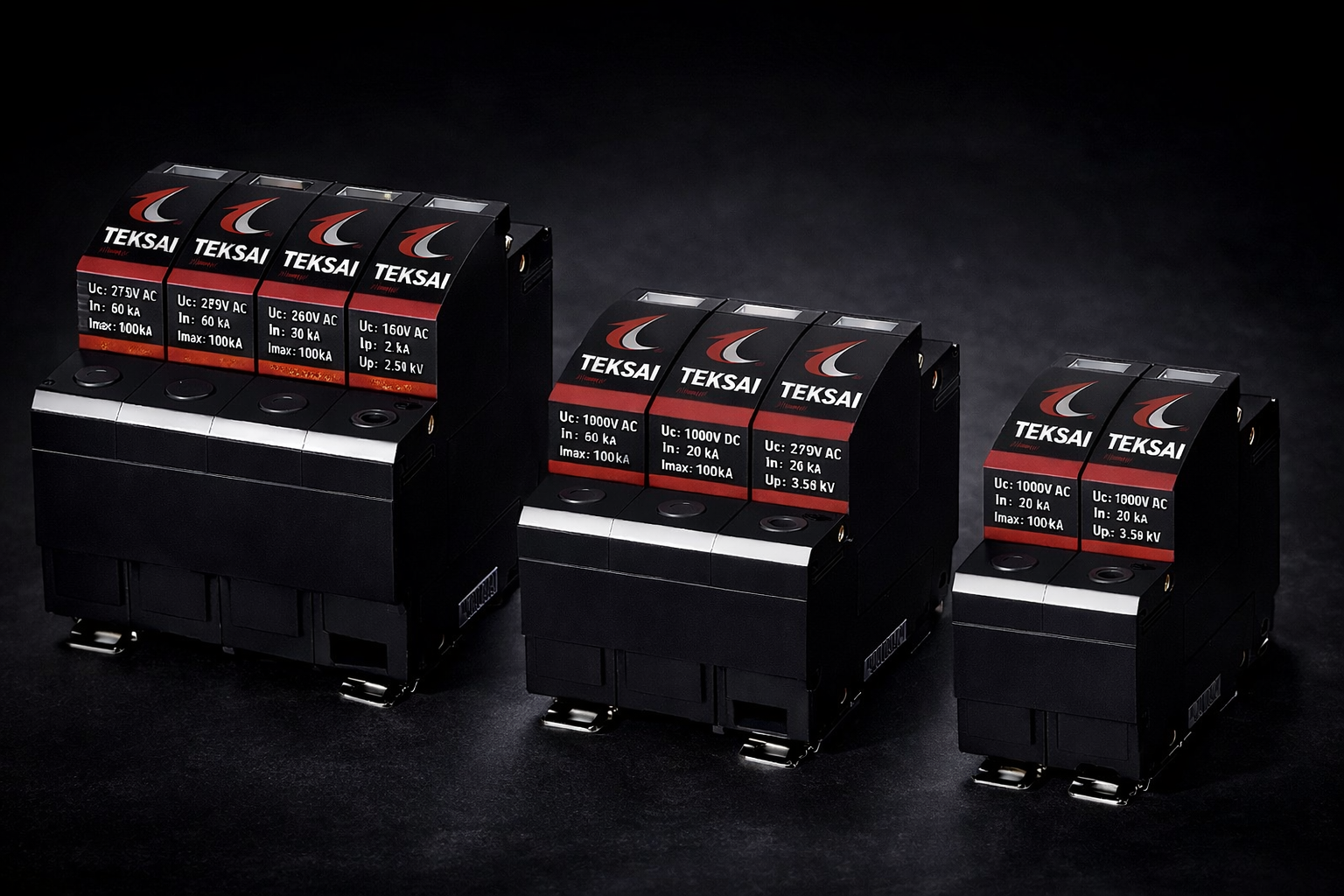

TEKSHIELD Class I+II SPD - Combined Lightning and Switching Surge Protection

Combined Protection

Single device providing both Class I and Class II protection levels

Discharge Capacity:Up to 100kA
Protection Types:Lightning + Switching
Voltage:230/400V AC
Installation:Entry Points

Dual Protection Levels

TEKSHIELD Class I+II SPD provides comprehensive protection against all types of electrical surges

I

Class I Protection

Direct Lightning Current Protection

Lightning Current:12.5/25 kA (10/350 μs)
Maximum Discharge:100 kA
Application:Direct lightning strikes
II

Class II Protection

Switching Surge Protection

Discharge Current:40kA, 50kA (8/20 μs)
Protection Level:≤1.5kV
Application:Indirect lightning & switching

Ideal Applications

TEKSHIELD Class I+II SPD is perfect for entry points requiring comprehensive surge protection

Main Distribution Boards

Primary electrical panels and service entrances

Lightning-Prone Zones

Areas with high lightning activity

Industrial Facilities

Manufacturing plants and industrial complexes

Critical Systems

Data centers and mission-critical equipment

Technical Specifications

Detailed specifications ensuring comprehensive protection and compliance with international standards

I+IIElectrical Specifications

TypeClass I+II (Type 1+2)
Nominal Voltage230/400V AC
Lightning Current (Iimp)12.5/25 kA (10/350 μs)
Discharge Current (In)40kA, 50kA (8/20 μs)
Maximum Discharge100 kA
Protection Level≤1.5kV
StandardsIEC 61643-11

⚡Installation & Features

Installation LocationService entrance/main panel
MountingDIN rail mountable
Status IndicationVisual LED indicators
Remote MonitoringOptional alarm contact
Operating Temperature-40°C to +70°C
Protection ClassIP20
Warranty5 years

Complete Surge Protection System

Enhance your protection with complementary TEKSHIELD products for comprehensive surge protection

Class I SPD

Primary protection for direct lightning strikes up to 100kA

View Class I SPD

Class II SPD

Secondary protection for switching surges up to 50kA

View Class II SPD

DC SPD

Solar PV and DC system protection up to 1000V

View DC SPD
