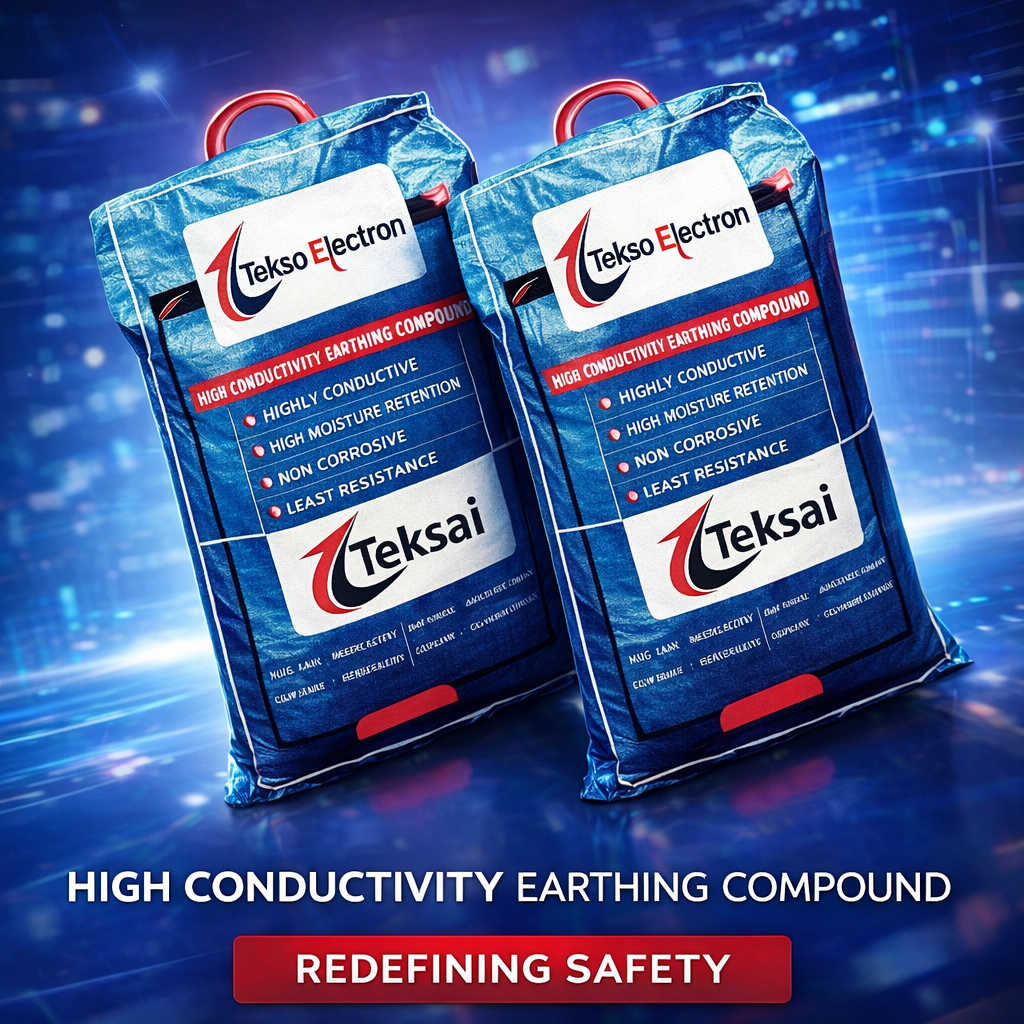

Advanced Earth Enhancement Compounds
TEKSAI's premium earthing compounds are engineered to enhance conductivity, stability, and longevity of grounding systems. Maintenance-free, environmentally friendly solutions that ensure consistently low resistance even in challenging soil conditions.
Three Performance Levels, Every Application
From ultra-high performance critical installations to cost-effective permanent solutions, TEKSAI offers the right compound for your specific requirements.
Enhanced Soil Conductivity for Superior Grounding
TEKSAI's advanced graphite-based earthing compounds significantly reduce soil resistivity and enhance grounding system performance across all soil conditions.
Our maintenance-free, eco-friendly formulations ensure consistently low resistance for decades, protecting critical infrastructure from electrical faults and lightning strikes.
<1Ω-m Resistivity
Ultra-low resistance for maximum efficiency
Eco-Friendly
Non-corrosive, safe for environment
LSR50 Earthing
High-conductivity graphite-based earthing compound for critical installations requiring ultra-low resistance.
Ideal Applications:
- • ESE lightning protection systems
- • Sensitive equipment grounding
- • Telecom towers & industrial substations
- • Renewable energy installations
TEKSAI ELECTRON
Premium graphite-enriched earthing compound offering excellent performance at cost-effective pricing.
Ideal Applications:
- • Residential & commercial earthing
- • Lightning arresters & surge protection
- • UPS, data centers & control panels
- • General industrial grounding
Universal Benefits Across All Products
Every TEKSAI earthing compound is engineered with environmental responsibility and long-term performance in mind.
Non-Corrosive & Safe
Safe for soil and groundwater, non-leaching formula protects environment and equipment.
Enhanced Contact
Significantly improves electrode-to-soil contact area for superior current dissipation.
Climate Stable
Prevents resistance fluctuations due to climate changes or soil dryness conditions.
Easy Application
Simple mixing with water or direct pour application around electrodes for quick installation.
Standards Compliant
Meets IEEE 80, IS 3043, and IEC grounding standards for professional installations.
Long Shelf Life
5+ years shelf life in sealed condition with maintained performance over decades after installation.
Installation Guidelines
Simple application process ensures optimal performance and longevity of your grounding system.
LSR50 Earthing & ELECTRON Application
Prepare Earth Pit
Excavate earth pit to required depth and position the earthing electrode securely.
Mix Compound
Mix earthing compound with clean water or pour directly around the electrode as required.
Fill & Compact
Fill the pit uniformly with the compound mixture and compact gently for optimal contact.
Backfill & Test
Complete backfilling with regular soil and conduct earth resistance testing after settling.
Conductive Cement Application
Position Electrode
Dig earth pit and position the electrode at the required depth with proper alignment.
Mix Cement
Mix TEKSAI Conductive Cement with clean water in 3:1 ratio to form homogeneous slurry.
Pour & Fill
Pour the cement slurry around the electrode and fill the pit uniformly without air gaps.
Cure & Energize
Allow 24-48 hours curing time before energizing the earthing system for optimal performance.
Choose the Right Solution
Compare key specifications to select the optimal earthing compound for your specific application requirements.
| Specification | LSR50 Earthing | TEKSAI ELECTRON | Conductive Cement |
|---|---|---|---|
| Graphite Content | 90% Pure | 70% + Additives | Cementitious Base |
| Resistivity | < 1 Ω-m | < 1.5 Ω-m | Highly Conductive |
| Best For | Critical/Sensitive Equipment | General/Commercial Use | Permanent/Rocky Soil |
| Application Method | Mix with water or direct pour | Mix with water or direct pour | 3:1 mix ratio with water |
| Shelf Life | 5+ Years | 5+ Years | Long-term Stable |
| Package Sizes | 5-25kg options | 5-25kg options | Various sizes available |
Complete Your Earthing System
Enhance your earth enhancement compound installation with complementary products for optimal performance
Copper Bonded Earth Rods
Premium copper bonded earth rods with 99.9% pure electrolytic copper bonding
Pure Copper Electrodes
Upgrade to 99.9% pure copper electrodes for maximum conductivity and longevity
Testing Accessories
Monitor and test your earthing system with professional test link boxes and accessories
Enhance Your Grounding System Performance
Get expert consultation on soil conditions and the optimal earthing compound for your specific installation. Our technical team will help you achieve consistently low resistance with environmentally responsible solutions.
