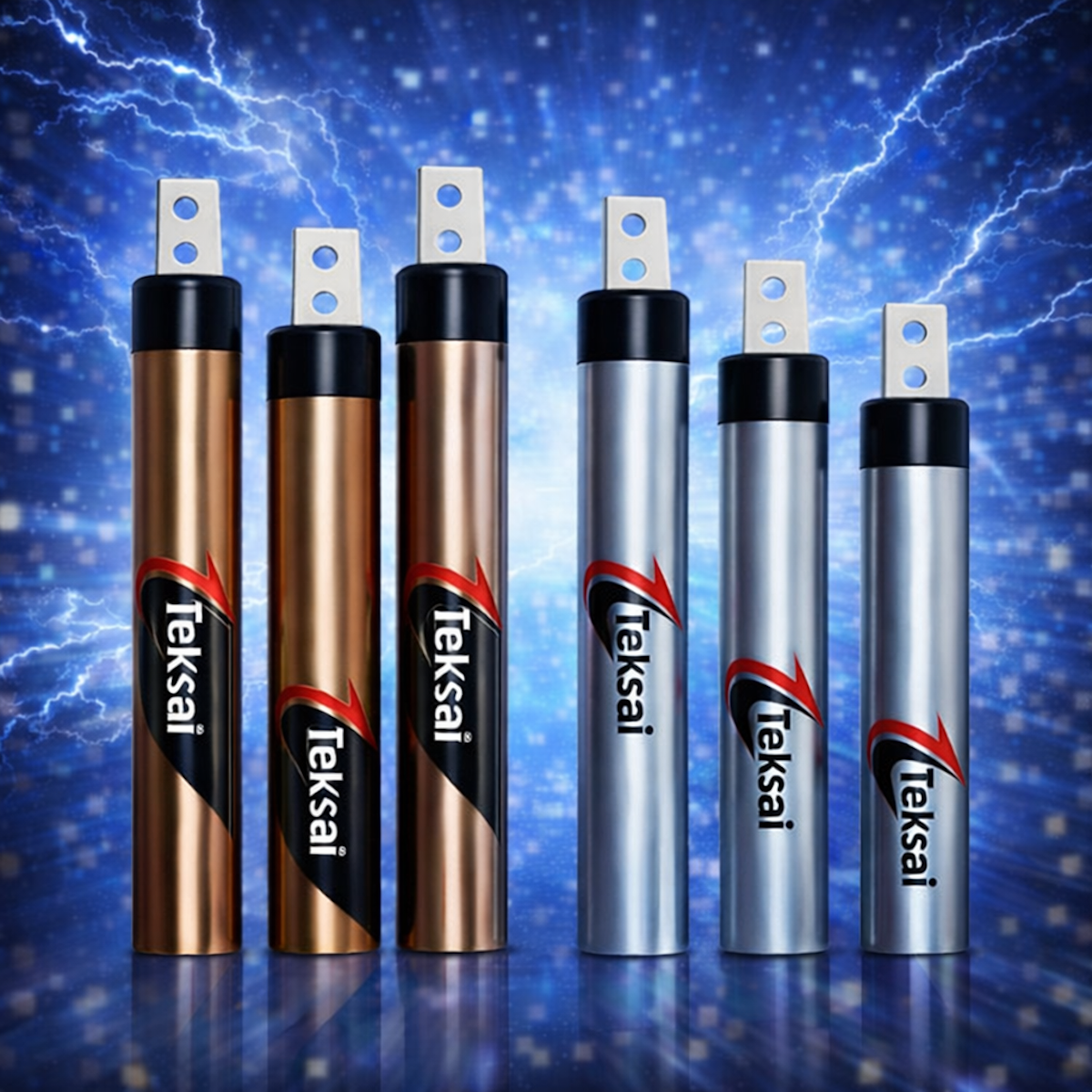

TEKSAI Pure Copper Earth Electrodes
Supreme Conductivity & Lifespan - The ultimate in earthing performance for critical applications demanding the highest safety, reliability, and enduring protection
The Gold Standard in Electrical Earthing
The TEKSAI Pure Copper Earth Electrode, made from 99.9% electrolytic copper, offers the ultimate in earthing performance. Its exceptional conductivity ensures rapid, efficient dissipation of fault currents and lightning strikes.
With unmatched natural corrosion resistance, it guarantees an exceptionally long, maintenance-free lifespan, even in the most aggressive environments. Choose TEKSAI Pure Copper for critical applications demanding the highest safety, reliability, and enduring protection.
≤0.2Ω Resistance
Lowest resistance in the industry for maximum efficiency
Maintenance-Free
30+ years of reliable performance without upkeep
Why Choose Pure Copper?
Six critical advantages that make TEKSAI Pure Copper Electrodes the premium choice for critical earthing applications
99.9% Purity
Made from pure electrolytic copper, ensuring maximum conductivity and performance consistency.
Superior Conductivity
Exceptional electrical conductivity ensures rapid, efficient dissipation of fault currents and lightning strikes.
Unrivaled Corrosion Resistance
Natural corrosion resistance ensures longevity even in coastal and chemical environments.
High Current Capacity
Crucial for lightning protection and critical systems requiring high fault current dissipation.
Maintenance-Free
Significant long-term cost savings with minimal maintenance requirements over decades.
Premium Solution
Top-tier earthing solution for applications where performance and reliability cannot be compromised.
Configuration Options
Available in two premium configurations to meet your specific installation requirements
Pipe-in-Pipe Design
Ultimate protection with compound enhancement
Applications:
Chemical plants, coastal installations, data centers, critical infrastructure
Single Pipe Solution
Pure copper excellence in streamlined form
Applications:
Premium installations, hospitals, IT facilities, high-value infrastructure
Technical Specifications
Detailed specifications meeting the highest international standards for premium copper earthing
CuMaterial Specifications
| Material Grade | 99.9% Electrolytic Copper |
| Standard | ASTM B152, IS 3043 |
| Resistance | ≤0.2Ω (Industry Lowest) |
| Conductivity | 58.0 MS/m (IACS 100%) |
| Pipe Grade | C10200 (Oxygen-Free) |
| Corrosion Resistance | Excellent (Coastal/Chemical) |
⌀Physical Specifications
| Diameter Range | 25mm - 120mm |
| Length Options | 1.2m, 2.4m, 3.0m, Custom |
| Wall Thickness | 3mm - 8mm (as per diameter) |
| Surface Finish | Bright Annealed |
| Operating Temp | -40°C to +200°C |
| Expected Lifespan | 30+ Years |
Performance Comparison
See why Pure Copper outperforms other earthing materials
| Material | Resistance | Corrosion Resistance | Lifespan | Maintenance |
|---|---|---|---|---|
| Pure Copper | ≤0.2Ω | Excellent | 30+ Years | None |
| Copper Bonded | ≤0.5Ω | Very Good | 20+ Years | Minimal |
| GI Electrodes | ≤1.0Ω | Good | 15+ Years | Moderate |
Critical Applications
Where pure copper electrodes are the preferred choice for mission-critical earthing requirements
Data Centers
Mission-critical facilities requiring ultra-low resistance and maximum reliability
Chemical Plants
Corrosive environments where copper's natural resistance is essential
Hospitals
Healthcare facilities requiring the highest safety standards and reliability
Coastal Installations
Marine environments where salt corrosion is a critical concern
Power Substations
High-voltage installations requiring superior fault current handling
Telecom Towers
Communication infrastructure requiring consistent low-resistance grounding
Solar Farms
Renewable energy installations requiring long-term performance
Premium Facilities
High-value installations where performance cannot be compromised
Complete Your Earthing System
Enhance your pure copper electrode installation with complementary products for optimal performance
Earth Enhancement Compounds
Reduce soil resistivity and improve electrode performance with LSR50 Earthing compounds
Copper Bonded Earth Rods
Premium copper bonded earth rods with 99.9% pure electrolytic copper bonding
Testing Accessories
Monitor and test your earthing system with professional test link boxes and accessories
Invest in Premium Protection
Choose TEKSAI Pure Copper Electrodes for applications where performance, reliability, and longevity are non-negotiable
