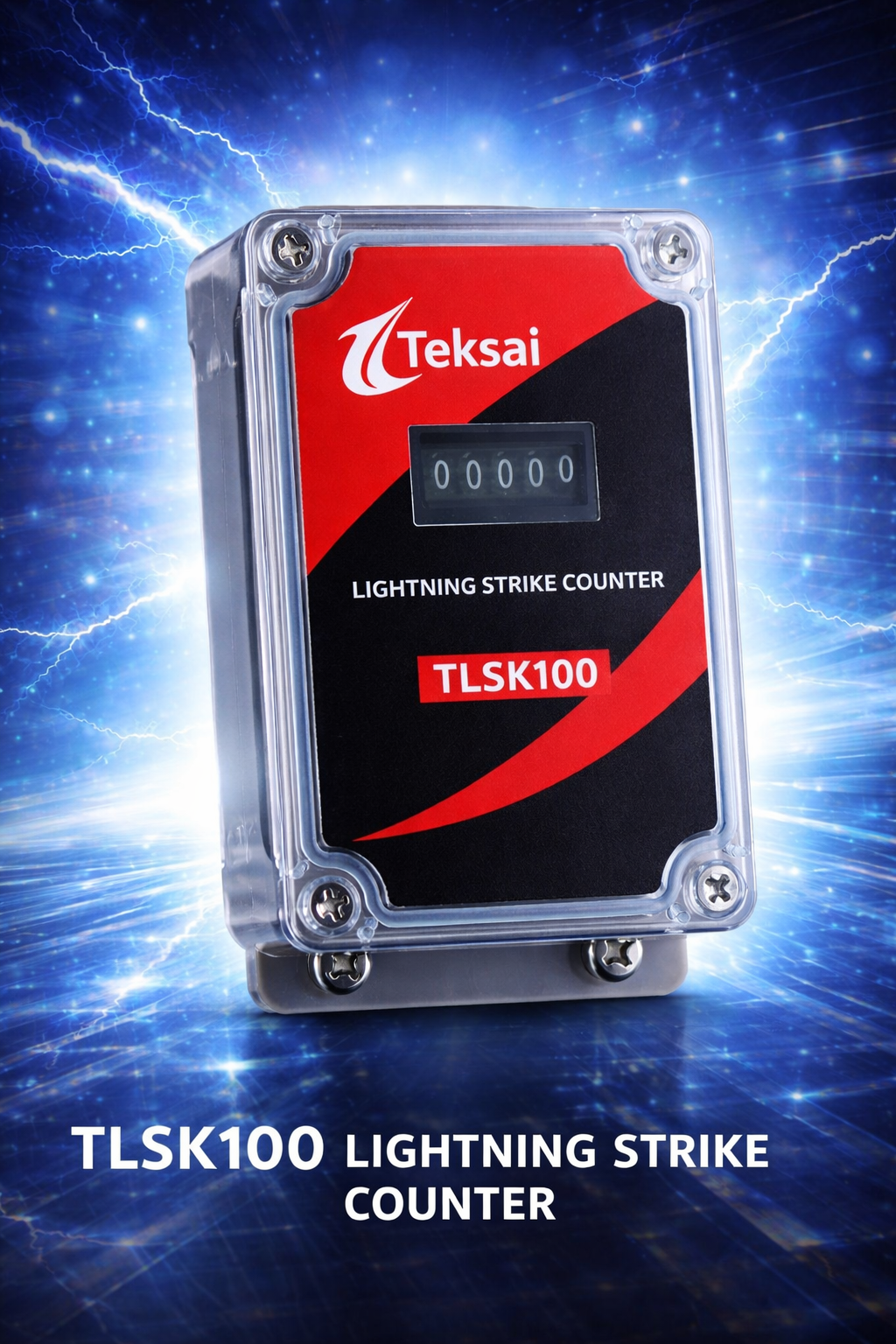

TEKSAI Lightning Strike Counter
Track Real-Time Strike Events for Safety & Maintenance | Battery-Free | Resettable Counter | Weatherproof Design
Real-Time Lightning Strike Monitoring
The TEKSAI Lightning Strike Counter is a non-powered, electro-mechanical device that records the number of lightning strikes captured by your lightning protection system. Installed directly on the down conductor, it provides real-time data for maintenance scheduling, safety audits, and strike frequency analysis.
This innovative device operates entirely without batteries or external power sources, making it ideal for remote installations and maintenance-free operation. The counter mechanism is triggered by the electromagnetic field generated during a lightning strike, ensuring accurate recording without any electrical connections.
Designed for long-term reliability, the TEKSAI Lightning Strike Counter features a resettable counter mechanism (0-999 count range) and weatherproof housing that withstands harsh outdoor conditions. Perfect for integration with TEKSO PREVENT conventional lightning protection systems and other lightning protection installations.
Zero Maintenance
No batteries, wiring, or periodic maintenance required for reliable operation
Accurate Detection
Electro-mechanical mechanism detects strikes above 1kA threshold reliably
Key Features & Benefits
Advanced electro-mechanical design ensures reliable strike recording without power requirements
Battery-Free Operation
No batteries or external power sources required. Operates entirely through electro-mechanical principles.
Resettable Counter
0-999 count range with manual reset capability for long-term monitoring and data collection.
Weatherproof Design
Durable plastic housing protects internal mechanism from harsh weather conditions and UV exposure.
Easy Installation
Simple mounting on down conductor. No special tools or technical expertise required for installation.
Technical Specifications
Detailed specifications for reliable lightning strike monitoring and recording
⚡Operating Specifications
📦Physical Specifications
Applications & Use Cases
Essential monitoring tool for comprehensive lightning protection system management
Lightning Protection Audits
Document strike frequency and system performance for compliance audits and insurance requirements.
Maintenance Scheduling
Plan preventive maintenance based on actual strike data rather than estimated schedules.
Safety Inspections
Verify system effectiveness and identify potential issues through strike frequency analysis.
Down Conductor Monitoring
Monitor individual down conductor performance in multi-conductor systems.
Strike Frequency Analysis
Analyze strike patterns to optimize protection system design and identify high-risk periods.
Compliance Documentation
Maintain records of lightning activity for regulatory compliance and certification purposes.
Installation & Integration
Simple installation process for seamless integration with existing lightning protection systems
Installation Process
Select Mounting Location
Choose a location on the down conductor, typically 1-2 meters above ground level for easy inspection access.
Secure Mounting
Attach the counter using the provided clamp mechanism, ensuring firm contact with the down conductor.
Verify Display
Check that the counter display is visible and readable. Reset counter to zero if needed for new installation.
Document Initial Reading
Record the initial counter reading and installation date for future reference and maintenance tracking.
System Compatibility
Compatible With:
- TEKSO PREVENT Conventional Lightning Protection Systems
- TEK1000 Air Gap Lightning Arresters
- Standard Franklin Rod Systems
- All standard down conductor configurations
Important Note
The counter should be installed on the down conductor, not on the air terminal or grounding electrode. Ensure proper contact with the conductor for accurate detection.
Complete Your Lightning Protection System
Enhance your lightning protection with complementary TEKSAI products
TEKSO PREVENT System
Complete conventional lightning protection system with modular components
TEK1000 Air Gap
Passive air gap technology for residential and small commercial applications
Surge Protection Devices
Protect electrical systems from lightning-induced surges
Monitor Your Lightning Protection System
Get professional installation support and technical assistance for TEKSAI Lightning Strike Counter
